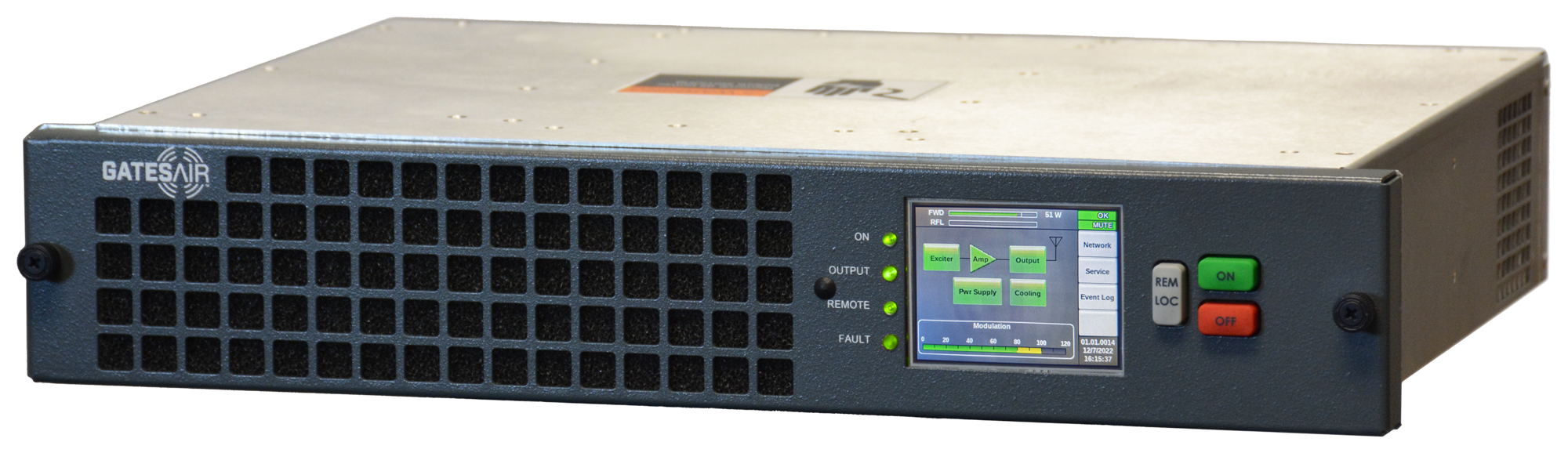

Flexiva™ GX Low-Power

Ultra-Compact Air-Cooled FM Analog Transmitter/Exciter: Low-Power Models from 50W to 3.5kW

Contact your local sales representative today!

OVERVIEW

The Flexiva™ GX air-cooled FM solid-state transmitter family provides today’s broadcaster with an ultra-compact transmission platform. Incorporating field-proven GatesAir technology, Flexiva transmitters deliver world-class performance, reliability and quality.

Flexiva GX utilizes the most compact design to provide the most reliable and robust low-power transmitter on the market today. Flexiva GX continues the legacy of the highly successful line of GatesAir FM transmitters and combines innovative RF amplification and feature sets to take FM transmission to the next level.

Featuring PowerSmart® technology, the Flexiva line offers unmatched efficiency that makes it ideal for all FM applications. The LDMOS device technology delivers a dramatic increase in power density, lower operating costs and reduced cost of ownership over the life of the transmitter.

As a world leader in digital transmission technology, our experts have developed the Flexiva GX for optimal size, efficiency, signal quality, and overall dependability. With multiple inputs and an integrated stereo encoder, it is a flexible, self-contained solution for a variety of FM broadcasting needs.

Customers can count on GatesAir for implementation. The company offers a range of support options from standard 24/7 telephone technical assistance and parts to installation, training, full system design and field maintenance contracts.

Main Features of Flexiva™ GX Low-Power

Ultra-compact, space-saving 2RU and 3RU designs
Broadband, frequency agile design 87.5 to 108 MHz requires no tuning or adjustments
Best-in-class power efficiency for lowest operating costs
State-of-the-art, direct-to-carrier digital modulator
Program inputs with automatic failover switching
Integrated stereo encoder
Static RDS generator
1 AES, 1 Analog L/R and 1 composite; optional AoIP and 2nd AES input
Digital MPX/Composite input over AES192 interface
Operation over a wide range of voltage and power stability conditions
Operation at up to 1.5:1 VSWR with proportional foldback
Full remote control capability including:
- Web-based HTML GUI interface
- SNMP v1, v2, v3
- Parallel control/monitoring
- Extensive Fault, Warning and Operational parameter logging
N+1, dual transmitter and main/alternate; automatic switching capability
Optional Features
- GPS receiver for SFN synchronization
- Intraplex IP Link 100e: STL via AOIP Linear, AES67, Icecast
- Audio Processor, Audio Playout from USB

Main Features of Flexiva™ GX Low-Power

Ultra-compact, space-saving 2RU and 3RU designs
Broadband, frequency agile design 87.5 to 108 MHz requires no tuning or adjustments
Best-in-class power efficiency for lowest operating costs
State-of-the-art, direct-to-carrier digital modulator
Program inputs with automatic failover switching
Integrated stereo encoder
Static RDS generator
1 AES, 1 Analog L/R and 1 composite; optional AoIP
